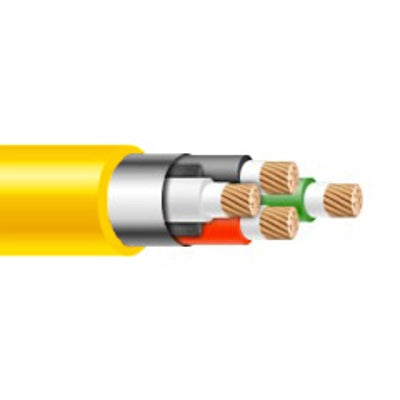

14/4 SOOW Yellow Portable Cord 600V UL/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Yellow

Applications:
Yellow SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Also Known As:
14-4 SO Cord, Generator Cord, Rubber Cord, 14 Gauge 4 Wire Cord.

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

Specifications*:

Size: 14 AWG
Number of Conductors: 4
Conductor Strand: 41/30
Insulation Thickness: 0.045 inches
Outside Diameter: 0.575 inches
Weight: 0.208 lbs per ft
Current Amps: 15

Color Code:
4 Conductors – Black, White, Red, Green
