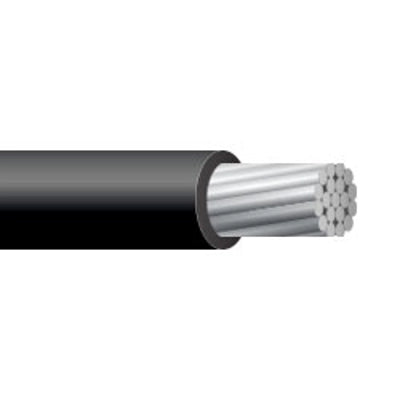

500 MCM Aluminum XLP/USE-2/RHH-RHW-2 Building Wire

Cut by the foot.

Approved for Direct Burial
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE

Application:
USE-2 cables are primarily used for power distribution, in raceways in accordance with National Electrical Code, except that the cable is not rated for use in cable tray. USE-2 is approved for direct burial and for service entrance below ground. USE-2 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for USE-2 cable is 600V

Applicable Standards:
USE-2 meets or exceeds the following standards
UL 44
Requirements of the National Electrical Code
ASTM standards B 800, B 801
Sunlight resistant

Conductor:
USE-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM

Specifications*:

Size: 500 MCM
Number of Strands: 35
Insulation Thickness: 0.095 inches
Outside Diameter: 0.929 inches
Weight: 0.595 lbs per ft
Ampacity: 330 Amps at 30°C

*Data provided on this page is subject to change based on different manufacturers variances.
