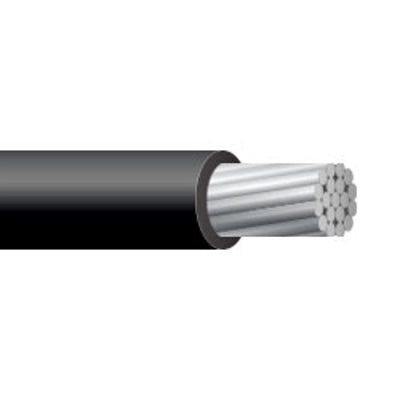

750 MCM XHHW-2 Aluminum Building Wire

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.

Applicable Standards:
- UL 44
- ASTM standards B800 and B801

Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801

Insulation:
UL recognized cross-linked polyethylene

Specifications*:

Size: 750 MCM
Number of Strands: 58
Insulation Thickness: 0.080 inches
Outside Diameter: 1.068 inches
Weight: 0.811 lbs per ft
Ampacity: 435 Amps at 90°C

*Data provided on this page is subject to change based on different manufacturers variances.
