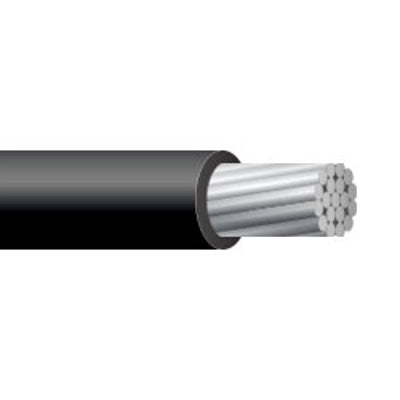

6 AWG XHHW-2 Aluminum Building Wire

#6 Stranded Aluminum XHHW-2 Wire

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.

Applicable Standards:
- UL 44
- ASTM standards B800 and B801

Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801

Insulation:
UL recognized cross-linked polyethylene

6 AWG XHHW-2 Specifications*:

Size: 6 AWG
Number of Strands: 7
Insulation Thickness: 0.045 inches
Outside Diameter: 0.259 inches
Weight: 0.038 lbs per ft
Ampacity: 60 Amps at 90°C

*Data provided on this page is subject to change based on different manufacturers variances.
