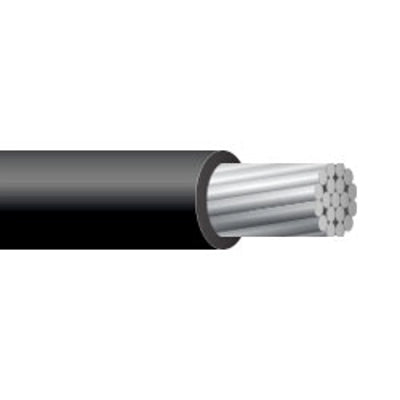

500 MCM XHHW-2 Aluminum Building Wire
SKU 5GCW1010
Original price
$2.00
-
Original price
$2.00
Original price
$2.00
$2.00
-
$2.00
Current price
$2.00
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire
Application:
XHHW-2 are primarily used in air duct, conduit or recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code.
Applicable Standards:
- UL 44
- ASTM standards B800 and B801
Conductor:
Compact stranded aluminum alloy 8000 series per ASTM B-801
Insulation:
UL recognized cross-linked polyethylene
Specifications*:
Size: 500 MCM
Number of Strands: 35
Insulation Thickness: 0.065 inches
Outside Diameter: 0.866 inches
Weight: 0.540 lbs per ft
Ampacity: 350 Amps at 90°C
*Data provided on this page is subject to change based on different manufacturers variances.
