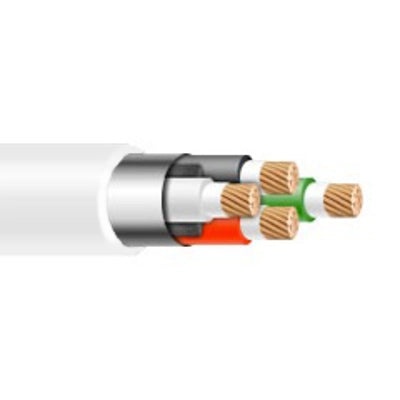

18/4 STOW White Flexible Portable Cord 600v UL/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
White

Applications:
18/4 STOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Jacket:
Polyvinylchloride (PVC), White Jacket. Temperature range: -20ºC to +60ºC. Voltage rating: 600 Volts.

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone

Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.

Specifications*:

Size: 18 AWG
Number of Conductors: 4
Conductor Strand: 16/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 10.03 mm / 0.395 inches
Weight: 0.092 lbs per ft
Current Amps: 7 (Green conductor for grounding only)

Color Code:
4 Conductors: Black, White, Red, Green
