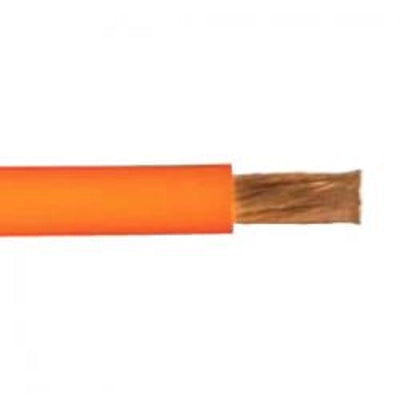

1 AWG Welding Cable Class M UL/CSA

#1 Welding Cable Class M

Class M welding cable offers flexibility and durability superior to class K welding cable.

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Orange

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
temporary power, flexible cable, 600 volt cable, copper cable, welders cable, hurricane cable, etc.

Features:
Excellent flexibility to last longer in flex applications. Abrasion-resistant. Resists oils and solvents. Rated -50ºC for use in cold environments. Weather-resistant. Sunlight-resistant. Ozone-resistant. Safety-colored for high visibility. Assured longer service life, saving money in replacement costs, maintenance cost and downtime.

Jacket:
Temperature range: -50ºC to +90ºC

Standards:
UL Listed
CSA Certified
MSHA Approved
Meets UL Vertical Flame Test per UL 854
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172 Class M

Specifications*:

Size: 1 AWG
Conductor Strand: 2090/34
Outside Diameter: 13.46 mm / 0.530 inches
Weight: 0.325 lbs per ft
Current Amps: 220 (For 600 Volt In-Line Applications)
