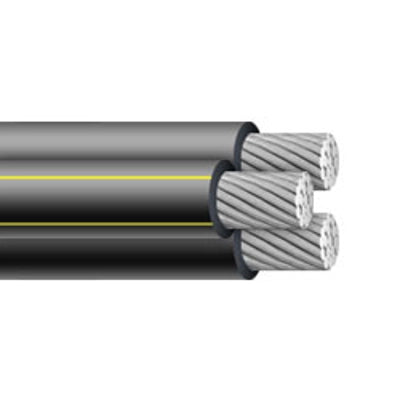

1/0, 1/0 & 1/0 Bergen Aluminum Triplex URD Direct Burial Cable

1/0, 1/0, & 1/0 Underground Secondary Distribution Cable

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service ENtrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

1/0, 1/0, & 1/0 Triplex URD Cable Specifications*:

Phase Conductor-Size: 1/0 AWG
Conductor Strand: 19
Neutral Conductor-Size: 1/0
Conductor Strand: 19
Insulation Thickness: 0.080 inches
Outside Diameter: 1.133 inches
Allowable Ampacity-Direct Burial: 215 Amps
Allowable Ampacity-In Duct: 180 Amps
Weight: 0.465 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
