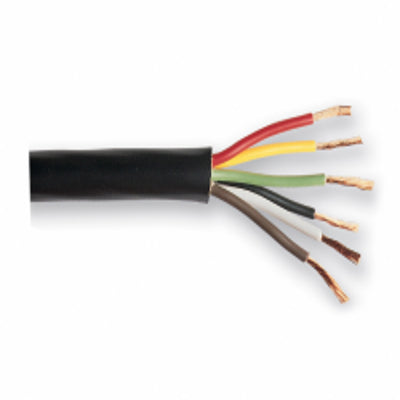

16/6 Trailer Cable Wire

Applications:
General-purpose primary wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128

Color Code:
6 Conductors: Red/Green/Brown/White/Black/Yellow

Specifications*:

Size: 16 Gauge
Conductors: 6
Number of Strands: 19/29
Jacket Color: Black
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.425 inches
Length: 100 ft
Weight: 0.200 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
