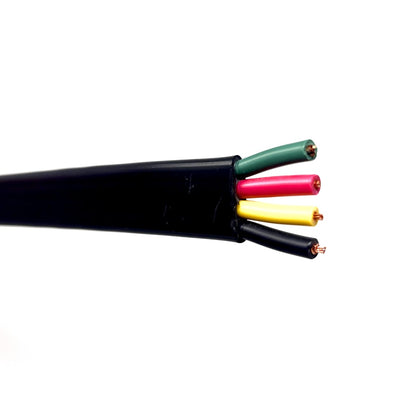

2/0 3C w/ Grnd Heavy-Duty Flat Jacketed Submersible Pump Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'.

Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.

Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -40° C to 75° C
Sequential footage marking

Standard:
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.

Construction:

Conductors:
Annealed bare stranded copper conductors

Insulation:
Polyvinyl Chloride (PVC)

Jacket:
Black PVC Jacket

Specifications*:

Size: 2/0 AWG
Number of Conductors: 3
Stranding: 19
Ground Wire Size: 6 AWG
PVC Insulation Thickness: 0.080 inches
Jacket Thickness: 0.060 inches
Nominal Cable Dimensions: 0.720 x 2.191 inches
Weight per foot: 2.020 lbs
