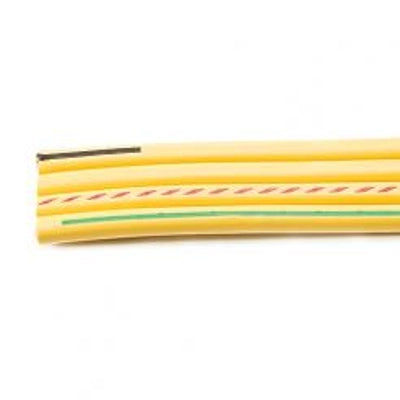

10/3 Flat Yellow Submersible Pump Cable w/ Ground

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 16' to maximum 1000'.

Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.

Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -40° C to 75° C
Sequential footage marking

Standard:
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.

Construction:

Conductors:
Annealed bare stranded copper conductors

Insulation:
Polyvinyl Chloride (PVC)

Jacket:
Flat Yellow Polyvinyl Chloride (PVC) Jacket

Specifications*:

Size: 10 AWG
Number of Conductors: 3
Number of Strands: 7
Ground Wire Size: 10 AWG
Insulation Thickness: 0.045 inches
Nominal OD: 0.210 x 0.910 inches
Weight per foot: 0.195 lbs
