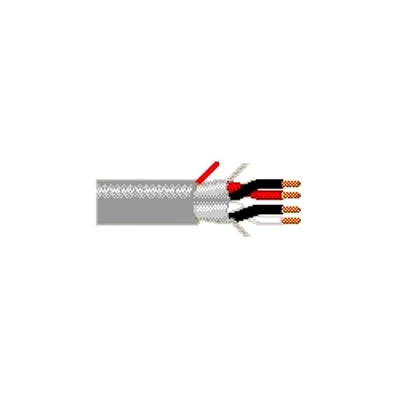

Belden 6541PA, 22 AWG 2 Pair, Individually Shielded Plenum, Security and Audio Cable
General Description
Belden 6541PA - 22 AWG BC conductors, FEP insulation, conductors twisted into pairs and individually shielded w/Beldfoil® tape (alum side facing in). Each pair has a 24 AWG TC drain wire, pairs cabled together, Fluorocopolymer jacket, ripcord. Sequential footage marking every two feet.
Belden 6541PA - Specifications | |
Size AWG: | 22 AWG |
Pairs: | 2 |
Conductor Material: | Bare Copper |
Outside Diameter: | .214 inches |
Jacket Color: | Gray |
Jacket Material: | PVDF - Fluorocopolymer |
Weight: | .026 lbs/ft |
