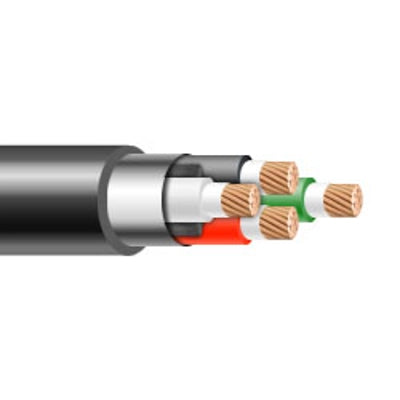

10/4 SJOOW Portable Cord 300V UL/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black.

Applications:
SJOOW Flexible Portable Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery.

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

Specifications*:

Size: 10 AWG
Number of Conductors: 4
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Outside Diameter: 16.64 mm / 0.655 inches
Weight: 0.305 lbs per ft
Current Amps: 25

Color Code:
4 Conductors: Black, White, Red, Green

*Data provided on this page is subject to change based on different manufacturers variances.
