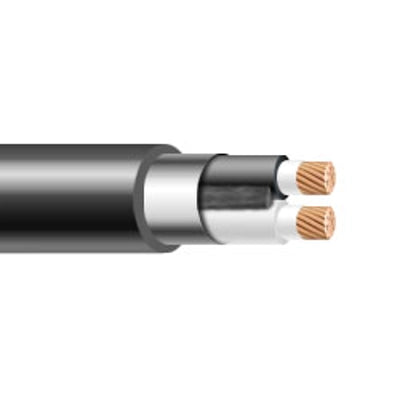

16/2 SJEOOW Portable Cord 300V Ul/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
SJEOOW Flexible Portable Cord applications include include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.

Features:
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC

Standards:
UL Flexible Cord - UL Standard 62
CSA Flexible Cord - C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
MSHA Approved
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method

Construction:
Conductors:
Fully annealed stranded bare copper per ASTM B-174
Insulation:
TPE

Specifications*:

Size: 16 AWG
Number of Conductors: 2
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 7.87 mm / 0.310 inches
Weight: 0.05 lbs per ft
Current Amps: 13

Color Code:
2 Conductors: Black, White

*Data provided on this page is subject to change based on different manufacturers variances.
