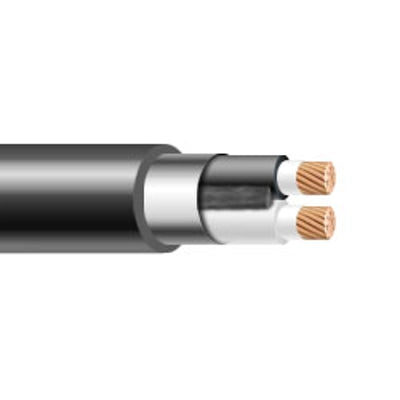

12/2 SJEOOW Portable Cord 300v Ul/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.

Color:
Black.

Applications:
SJEOOW Flexible Portable Cord applications include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.

Features:
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC

Standards:

UL Flexible Cord - UL Standard 62
CSA Flexible Cord - C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
MSHA Approved
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method

Construction:
Conductors:
Fully annealed stranded bare copper per ASTM B-174
Insulation:
TPE

Specifications*:

Size: 14 AWG
Number of Conductors: 4
Conductor Strand: 41/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 10.03 mm / 0.395 inches
Weight: 0.14 lbs per ft
Current Amps: 15

Color Code:
4 Conductors: Black, White, Red, Green

*Data provided on this page is subject to change based on different manufacturers' variances.
