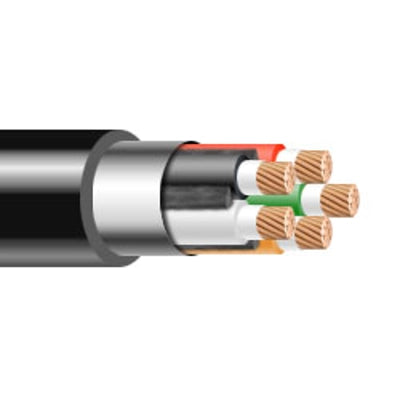

18/5 SJTOW Portable Cord 300v UL/CSA

18/5 SJTOW Portable Cord 300v UL/CSA, Black

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 30 to maximum 2500. Please call for longer put ups.

Applications:
SJTOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Conductors:
 S18 through 6 AWG fully annealed stranded bare copper per ASTM B-174.

Insulation:
Premium-grade, color-coded PVC.

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone.

Jacket:
Polyvinyl Chloride (PVC), Black. Temperature range: -20C to +60C. Voltage rating: 300 Volts.

Standards:
UL Flexible Cord - UL Subject 62. MSHA Approved (where applicable).

Specifications*:

Size: 18 AWG
Insulation Thickness: 0.76 mm / 0.030 inches
Number of Conductors: 5
Conductor Strand: 16/30
Outside Diameter: 10.06 mm / 0.396 inches
Weight: 0.088 lbs per ft
Current Amps: 7 (Green conductor for grounding only)
Color Code: 5 Conductors: Black, White, Red, Green, Orange

*Data provided on this page is subject to change based on different manufacturers variances.
