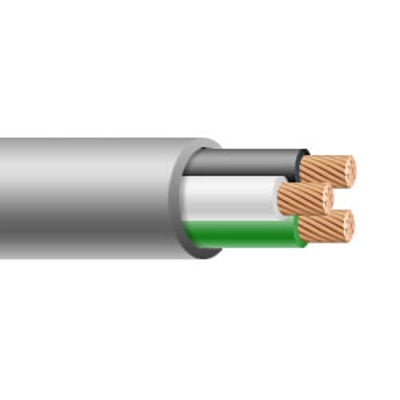

12/3 SJTO Portable Cord 300v UL/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.

Applications:
SJTO Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Jacket:
Polyvinylchloride (PVC), Gray or Yellow. Temperature range: -20ºC to +60ºC. Voltage rating: 300 Volts.

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone

Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.

Specifications*:

Size: 12 AWG
Number of Conductors: 3
Conductor Strand: 65/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 10.92 mm / 0.430 inches
Weight: 0.162 lbs per ft
Current Amps: 25 (Green conductor for grounding only)

Color Code:
3 Conductors: Black, White, Green

*Data provided on this page is subject to change based on different manufacturers variances.
