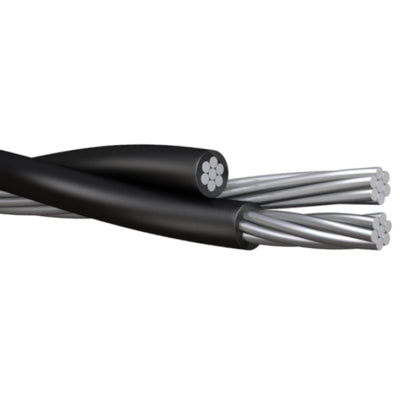

#4-4-4 Periwinkle Aluminum Triplex Overhead Service Drop Cable
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Color:
Black.
Description:
Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum
Conductor:
Aluminum Triplex Overhead cable has concentric strand or compressed 1350-H19 series aluminum conductor.
Insulation:
Aluminum Triplex Overhead cable has a black cross linked polyethylene (XLP) insulation.
Aluminum Triplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of
Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S-76 - 474
Specifications*:
Phase Conductor-Size: 4 AWG
Conductor Strand: 7
Insulation Thickness: 0.050 inches
Neutral Conductor-Size: 4 AWG
Conductor Strand: 6/1
Allowable Ampacity: 110 Amps
Weight: 0.172 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
