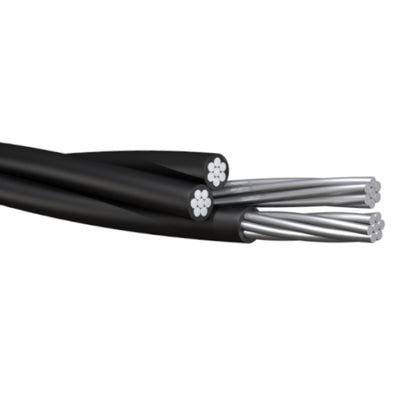

4/0-4/0-4/0-4/0 Appaloosa Aluminum Quadruplex Overhead Service Drop Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Color:
Black.

Description:
Aluminum Quadruplex Overhead cable is designed for use to supply 3 phase power, usually from a pole mounted transformer, to the consumer weather head, where the connection to the service entrance cable is made. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum.

Conductor:
Aluminum Quadruplex Overhead cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

Insulation:
Aluminum Quadruplex Overhead cable has a black cross linked polyethylene (XLP) insulation.

Messenger:
Aluminum Quadruplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Applicable Standards:
ASTM B-230
ASTM B-231
ASTM B-232
ASTM B-399
ICEA S -76 - 474

Specifications*:

Phase Conductor-Size: 4/0
Conductor Strand: 19
Insulation Thickness: 0.060 inches
Neutral Conductor-Size: 4/0
Conductor Strand: 6/1
Allowable Ampacity: 270 Amps
Weight: 1.079 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
