3M 7694-S-4, Cold Shrink Termination Kit, 0.83
SKU 3GCW4753
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Description

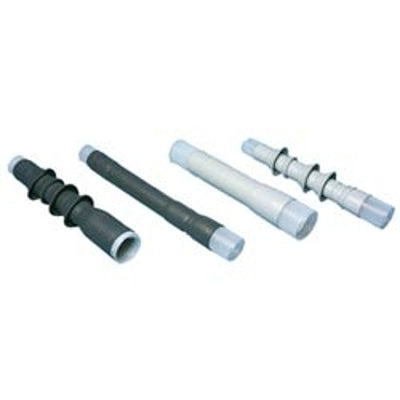

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
3M Cold Shrink Silicone Rubber Termination Kit QT-III, 7620-S, 7680-S and 7690-S Series contain one-piece, skirted, silicone rubber terminations, qualified as IEEE Standard 48-1996 Class 1 for outdoor weather-exposed applications. The termination assem blies consist of a skirted insulator, high-dielectric constant (Hi-K) stress control tube*, conformable Hi-K stress controlling compound and built-in silicone top seal. The insulator is made of a dark gray silicone rubber with excellent tracking resist ance and hydrophobic properties. *7620-S and 7621-S designed and assembled with stress controlling compound only. The complete assembly is pre-stretched and loaded onto a removable core. The disposable core can be recycled. The kits are designed for terminating solid dielectric shielded power cables rated 5 through 34.5 kV, with tape shield, wire shield and UniShield® constructions.
Details:
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Includes 3 skirted, 1-piece, 3-phase, cold shrink terminations
Specifications:
- Agency Approvals: IEEE
- BIL: 150 kV
- Cable Insulation Outside Diameter Range: 0.83-1.53 in
- Cable Shielding: Tape Shield, UniShield®, Wire Shield
- Conductor Size by Voltage: (5 kV) 500-750 MCM, (8 kV) 350-700 MCM (15 kV) 4/0-500 MCM (25/28 kV) 2/0-250 MCM
- Conductor Sizes: 2/0 AWG, 250 MCM, 3/0 AWG, 300 MCM, 350 MCM, 4/0 AWG, 400 MCM, 500 MCM, 600 MCM, 700 MCM, 750 MCM
- Indoor/Outdoor: Outdoor Skirted
- Number of Skirts: 4
- Insulation Level: 100%, 133%
- Maximum Installed Length: 12.25 in
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
3M Cold Shrink Silicone Rubber Termination Kit QT-III, 7620-S, 7680-S and 7690-S Series contain one-piece, skirted, silicone rubber terminations, qualified as IEEE Standard 48-1996 Class 1 for outdoor weather-exposed applications. The termination assem blies consist of a skirted insulator, high-dielectric constant (Hi-K) stress control tube*, conformable Hi-K stress controlling compound and built-in silicone top seal. The insulator is made of a dark gray silicone rubber with excellent tracking resist ance and hydrophobic properties. *7620-S and 7621-S designed and assembled with stress controlling compound only. The complete assembly is pre-stretched and loaded onto a removable core. The disposable core can be recycled. The kits are designed for terminating solid dielectric shielded power cables rated 5 through 34.5 kV, with tape shield, wire shield and UniShield® constructions.
Details:
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Includes 3 skirted, 1-piece, 3-phase, cold shrink terminations
Specifications:
- Agency Approvals: IEEE
- BIL: 150 kV
- Cable Insulation Outside Diameter Range: 0.83-1.53 in
- Cable Shielding: Tape Shield, UniShield®, Wire Shield
- Conductor Size by Voltage: (5 kV) 500-750 MCM, (8 kV) 350-700 MCM (15 kV) 4/0-500 MCM (25/28 kV) 2/0-250 MCM
- Conductor Sizes: 2/0 AWG, 250 MCM, 3/0 AWG, 300 MCM, 350 MCM, 4/0 AWG, 400 MCM, 500 MCM, 600 MCM, 700 MCM, 750 MCM
- Indoor/Outdoor: Outdoor Skirted
- Number of Skirts: 4
- Insulation Level: 100%, 133%
- Maximum Installed Length: 12.25 in
