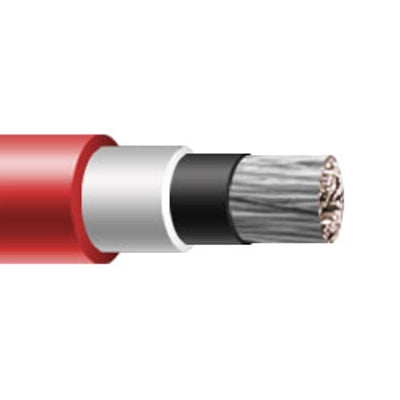

2 AWG Jumper Cable Red 5kV/15kV

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Color:
Red.

Applications:
Suitable as a flexible power lead for temporary connections and other industrial applications.

Features:
Excellent resistance to oil and weather. Excellent flexibility. Water-resistant. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
ICEA S-97-682
ICEA S-75-381/NEMA WC-58
ASTM B172
ASTM B 33
UL 1072

Construction:
Conductors:
Flexible strand tin coated copper, ASTM B-172 and ICEA S-75-381
Separator:
Synthetic semi-conducting tape separator between the conductor and insulation
Insulation:
Ethylene-propylene rubber (EPR), UL 1072
Jacket:
Red heavy duty CPE thermoset compound, ICEA S-75-381 sec 3.22

Specifications*:

Size: 2 AWG
Conductor Strand: 259x0.159
Insulation Thickness: 0.175 inches
Jacket Thickness: 0.080 inches
Outside Diameter: 0.820 inches
Weight: 0.48 lbs per ft
Amps 40ºC: 195
