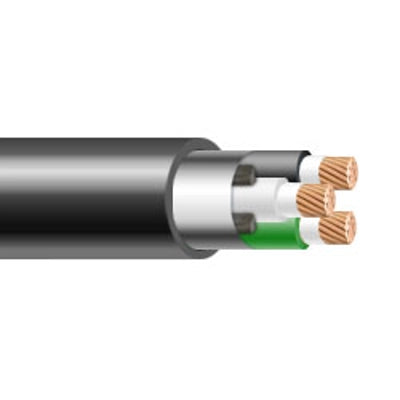

8/3 SOOW Portable Cord 600V Non UL

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 2000 ft. Please call for longer put ups.

Color:
Black

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

8/3 SOOW Specifications*:

Size: 8 AWG
Number of Conductors: 3
Conductor Strand: 65/26
Insulation Thickness: 0.050 inches
Outside Diameter: 0.695 inches
Weight: 0.375 lbs per ft
Current Amps: 40

Color Code:
3 Conductors – Black, White, Green

Also Known As:
8-3 Generator Cord, 8-3 rubber cord, 8 gauge 3 wire cord,  8/3 SO Cord, 8 AWG 3 Conductor Flexible Cord. 8/3 Extension Cord
