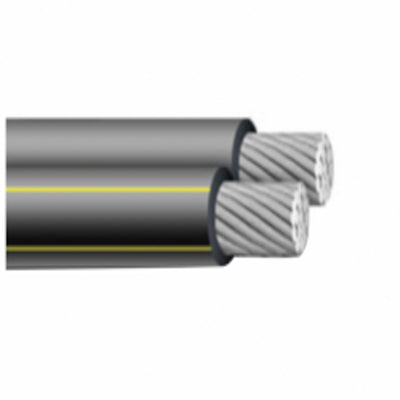

8-8 Bard Aluminum Duplex URD Direct Burial Cable

8-8 Underground Secondary Distribution Cable

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service ENtrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

8-8 Duplex URD Cable Specifications*:

Phase Conductor-Size: 8 AWG
Conductor Strand: 7
Neutral Conductor-Size: 8 AWG
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Outside Diameter: .524 inches
Allowable Ampacity-Direct Burial: 70 Amps at 90°C
Weight: 0.076 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
