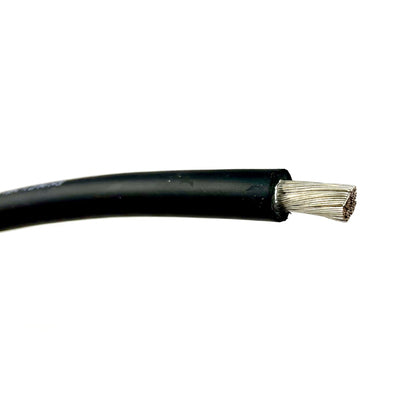

8 AWG Diesel Locomotive Cable 2KV

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environments. Diesel electric locomotives. For applications where flexible power leads must be installed in conduit or raceway. Motor leads.

Features:
90ºC temperature rating. Excellent impact and abrasion resistance. Resists oils, acids, alkalies, heat and flame. Flexible tinned copper stranding

Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.

Standards:
UL Listed
Accepted by MSHA for listing as flameresistant
CSA R90
RoHS Compliant

Construction:
Conductor:
10 AWG through 777.7 kcmil stranded tinned annealed bare copper per AAR 589
Insulation:
Premium grade 90ºC EPDM

Specifications*:

Size: 8 AWG
Conductor Strand: 37/24
Insulation Thickness: 1.52 mm / 0.060 inches
Jacket Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 8.64 mm / 0.34 inches
Weight: 0.095 lbs per ft
Allowable Ampacity:  80 Amps
