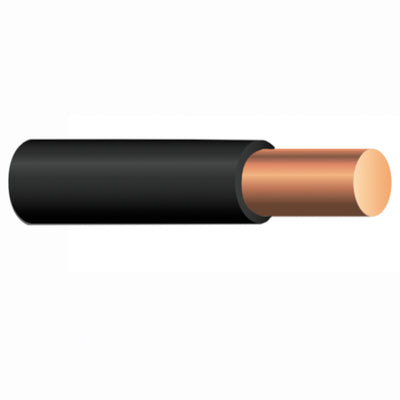

14 AWG Solid XLP/USE-2/RHH/RHW-2 Building Wire, 500ft or 1000ft Spool

Solid XLP/USE-2 or RHW-2 or RHH 90°C - 600 Volt Stranded Building Wire.

Description:
Single copper conductor, solid, insulated with moisture and heat resistant, chemically cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.

Applications:
Types USE-2, RHH/RHW-2 are suitable for use in general purpose wiring applications and may be installed in raceway, conduit, direct burial and aerial installations where a cable having superior flame retardance is required.

Features:
CT use 1/0 and larger Gasoline and Oil resistant Direct Burial/Sunlight resistant.
Temperature Rating -40°C TO 90°C

Standards:
ASTM B3, B8 and B787
UL 44 and UL 854, ICEA S-95-658/NEMA WC-70
C(UL) US RW90 1kV:CSA/UL Listed
Federal spec. A-A-59544
Suitable for use in 105° C Dry System
RoHS Compliant

Specifications*:

Size: 14 AWG
Stranding: Solid
Insulation Thickness (Conductor): 0.045 inches
Outside Diameter: 0.170 inches
Weight: 0.021 lbs per ft
Allowable Ampacity: 15 Amps at 90°C Wet/Dry
