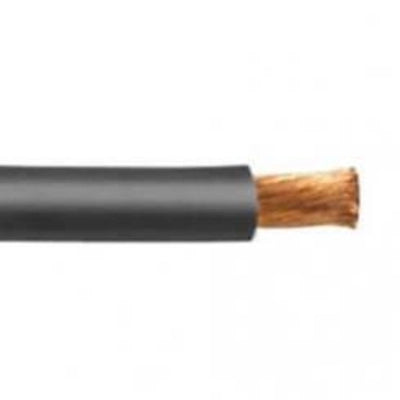

4/0 Gauge Battery Cable, Type SGT

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Type: SGT SAE J1127 Battery Cable

Colors Available:
Black & Red

Applications:
Used for connecting battery to switch, starter, and ground. Tough, high temperature resistant PVC insulation is durable enough to handle heavy-duty automotive demands.

Features:
Highly Flexible Thermoplastic Polyvinyl Chloride

Insulation:
Polyvinyl Chloride (PVC)

Temperature:
Rated 80°C

Standards:
SAE J1127

Conductor:
Stranded Bare Copper

Also Known As:
Battery Cable, 4/0 Automotive Battery Wire, Type SGT SAE J1127-Battery Cable

Specifications*:

Size: 4/0
Conductor Strand: 2,052
Outside Diameter: 0.700 inches
Voltage: 60V DC (25 V AC) or less
Weight: 0.737 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
