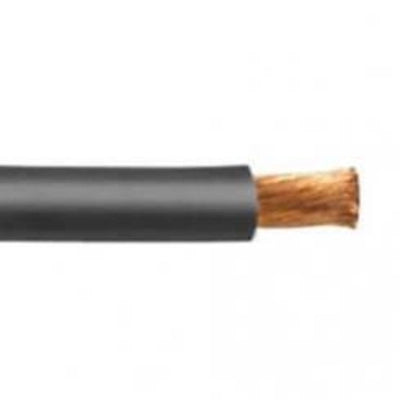

1 Gauge Battery Cable, Type SGX

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Type: SGX SAE J1127 Battery Cable

Colors Available:
Black & Red

Applications:
For use in starter and battery circuits where resistance to abrasion, heat and aging is desirable.

Insulation:
XLPE

Temperature:
Rated –40°C to 125°C

Standards:
SAE J1127

Conductor:
Stranded Bare Copper

Also Known As:
Battery Cable, 1 Gauge Automotive Battery Wire, Type SGX SAE J1127-Battery Cable

Specifications*:

Size: 1 AWG
Conductor Strand: 133
Outside Diameter: 0.460 inches
Voltage: 60V DC (25 V AC) or less
Weight: 0.307 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
