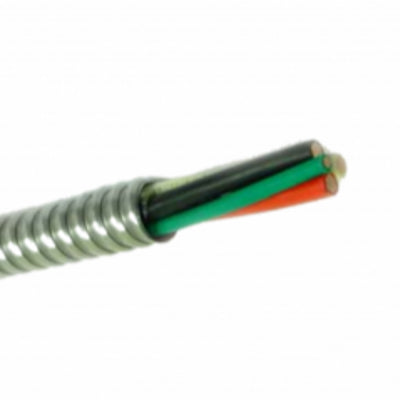

2/0-3C MC Cable w/ Ground, Aluminum Conductors
2/0-2/0-2/0-4 Metal Clad (MC) Cable with Ground, Aluminum Armored, Stranded Aluminum Conductors
Applications:
Aluminum Conductor - Aluminum MC Cable is suitable for use in branch, feeder and service power distribution under high ambient temperature in commercial, industrial, institutional, casinos and multi-residential buildings; for power, lighting, control and signal circuits; in concealed or exposed installations; in environmental air-handling spaces per NEC 300.22; in places of assembly per NEC 518.4 and theaters per NEC 520.5; in aerial applications when attached to a messenger; for installation in cable tray and approved raceways; under raised floors for IT equipment per NEC 645.5(D) and 645.5(D)(2); Class I Div 2, Class II Div 2, Class III Div 1 hazardous locations.
Conductors:
Aluminum MC Cable has a compact strand 8000 series aluminum alloy conductors.
Insulation:
Aluminum MC Cable has color coded cross-linked polyethylene XHHW-2 or THHN/THWN-2 insulation. The cable ground is either bare or has green insulation. A binder tape is wrapped over the conductor assembly.
Armor:
Aluminum MC Cable has an overall aluminum interlocked armor.
Standards:
- UL 44, UL 1569 for type MC
- NEMA WC70
- IEEEE 1202 70,000 BTU vertical flame test
- ICEA S – 95-658
- Federal Spec A-A59544 (formerly J – C – 30B)
Specifications*:
Size: 2/0
Conductors: 3 + 1 Ground
Ground Size: 4 AWG
Outside Diameter: 1.420 inches
Weight: 0.74 inches
Ampacity: 150
*Data provided on this page is subject to change based on different manufacturers variances.
