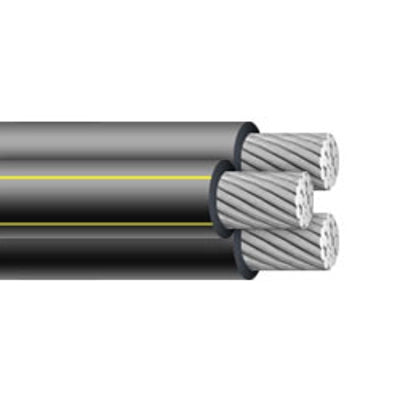

750, 750 & 500 Fairfield Aluminum Triplex URD Direct Burial Cable

750, 750, & 500 Underground Secondary Distribution Cable

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

750, 750, & 500 Triplex URD Cable Specifications*:

Phase Conductor Size: 750MCM
Phase Conductor Insulation Thickness: 0.110 inches
Neutral Conductor Size: 500MCM
Neutral Conductor Insulation Thickness: 0.095 inches
Allowable Ampacity-Direct Burial: 615 Amps at 90°C
Allowable Ampacity-In-Duct: 525 Amps at 90°C
Outside Diameter: 2.04 inches

*Data provided on this page is subject to change based on different manufacturers variances.
